YXI96 Pro Handheld Infrared Thermal Imaging Camera


Combining precise temperature measurement with high-performance imaging, this handheld thermal camera series features a wide dynamic range from -20°C to 550°C (-4°F to 1022°F)—making it equally effective for low-temperature electrical repairs and high-temperature power grid maintenance. Engineered for power maintenance, fire safety, and HVAC/underfloor heating inspections, the YXI96 / YXI96 Pro helps technicians pinpoint fault locations and identify potential safety hazards, making diagnostic work faster, clearer, and more efficient.

Category:

Outdoor viewing thermal imager

Key words:

YXI96 Pro Handheld Infrared Thermal Imaging Camera

Product Features

Main features of the product:
1. -20 to 550°C Temperature Measurement Range
2. 96×96 infrared resolution options are available
3. 200W visible light
4. Manual Flashlight Function
5. Multiple Selectable Color Palettes
6. TISR Mode: Supports TISR mode to capture more imaging details
7. Supports multiple language interfaces
8. Rechargeable Battery: Fast charging meets users' long-duration measurement needs

Technical parameters

Mode YXI96 YXI96 Pro
Temperature Range -20℃-550℃
Infrared Resolution 96×96
Measurement Resolution ±2℃ or ±2% of reading (whichever is greater)
Measurement Sensitivity 0.1℃
Detector Type VOx
Measurement Mode Industry Temperature Measurement
Emissivity 0.01~1.00
Infrared Wavelength Range 8~14μm
Pixel Size 12μm
Spatial Resolution 8.89mrad
Focal Length 1.35mm
Frame Rate 25Hz
Thermal Sensitivity (NETD) ≤60mK@25 °C,F#1.0
Focusing Method Fixed Focus
Field of View (FOV) 50° × 50°
Temperature Units ℃/℉/K
Temperature Display Center Point, Max Temp, Min Temp
Temperature Analysis PC Analysis Tool
TISR √ (Resolution: 192×192)
Isotherm Lines √
Center Point Temperature Measurement √
High/Low Temperature Tracking √
High/Low Temperature Alarm On-screen marker alarm
Color Palettes White Hot, Black Hot, Rainbow, Iron Red, Fusion
Visible Light Camera / 200W
Image Modes Thermal Thermal, Visible, Fusion, PIP
Image/Video Capture √
Image Format JPEG/MP4
Flashlight / √
Data Interface Type-C
Support Interface Simplified Chinese, Traditional Chinese, English, Russian, Japanese, German, French, Italian, Korean, Polish
Storage 4G SD Card / Expandable 8G SD Card / Expandable
Battery Non-removable 2000mAh Non-removable 3200mAh
Charging Time ≤4h
Operating Time ≈9h
Operating Temperature -10~50℃
Operating Humidity 10%~90%RH (non-condensing)
Storage Temperature -20~60℃
Power Consumption ≤0.9W ≤1.4W
IP Rating IP54
Certifications CE、FCC、ROHS
Other Specification
Display 2.4-inch TFT LCD
Product Dimensions 225mm × 70mm × 86.5mm
Product Weight 310g
Standard Accessories Main unit, color box, manual, Type-C data cable (1 meter), lanyard
Optional Accessories Micro-Lens

Application Scenarios

Security monitoring

Security monitoring

Power system detection

Power system detection

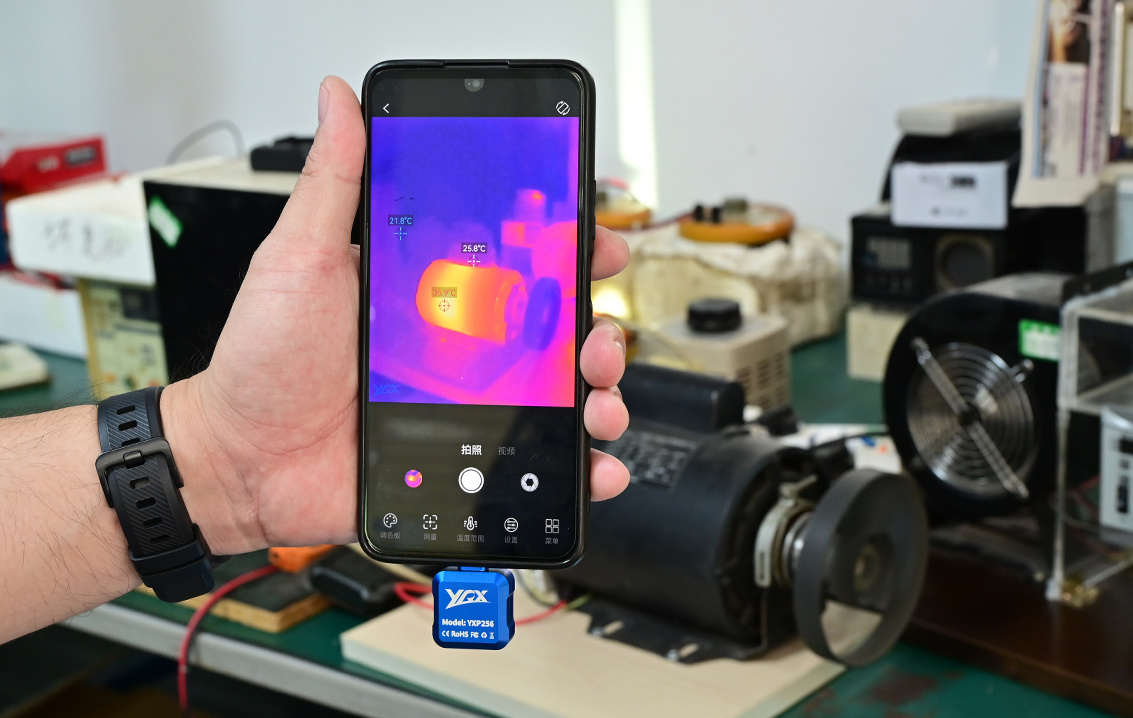

Machinery equipment maintenance-YXP

Machinery equipment maintenance-YXP
