YXM225 Handheld Observation Thermal Imaging Camera
The YXM225 handheld observation thermal imaging camera is a multifunctional thermal imager that integrates basic observation, searching, and reconnaissance capabilities. In low-light or no-light environments, it leverages its superior thermal imaging abilities to enable long-distance target observation and environmental patrols.
The YXM225 adopts an ergonomic design, making it lightweight, easy to operate, and equipped with outstanding nighttime reconnaissance capabilities. It is widely used in scenarios such as patrols, hiking, and tourism. This monocular handheld infrared binocular is lightweight, portable, easy to operate, and suitable for a wide range of applications.
Category:
Outdoor viewing thermal imager
Key words:
YXM225 Handheld Observation Thermal Imaging Camera
Product Features
Main features of the product:
1. 256×192 infrared resolution
2. 50Hz Frame Rate
3. 25mm Focal Length
4. 6 Color Palettes
5. Long-Range Detection & Identification
6. 1x/2x/4x digital zoom with adaptive scaling
7. Electronic Compass Function
8. 16G Built-in Storage
Technical parameters
| Model | YXM225 | YXM235 | |
| Sensor | Detector Type | Uncooled VOx Infrared Focal Plane Detector | |
| Infrared Resolution | 256×192 | ||
| Pixel Size | 12μm | ||
| Infrared Wavelength Range | 8~14μm | ||
| Thermal Sensitivity (NETD) | ≤ 40 mK @25℃, F#1.0, 25Hz | ||
| Frame Rate | 50Hz | ||
| Objective lens | Focus adjustment | Manual focus | |
| Lens aperture | 1.0 | ||
| Lens Focal Length | 25mm | 35mm | |
| Spatial Resolution (IFOV) | 0.48mrad | 0.34mrad | |
| Base Magnification | 3.6 | 5.0 | |
| Field of View (FOV) | 7.03° x 5.39° | 10.7° x 8.0° | |
| Eyepiece | Eye relief | 46mm | |
| Dioptre adjustment | ±5D | ||
| Close-up range | 5m - ∞ | ||
| Display | Screen Size | 0.39 inc, OLED | |
| Resolution | 1024 x 768 | ||
| Digital Zoom | 1x 2x 4x | ||
| Detection Distance | Human (m) | 1181m | 1653m |
| Wild Boar (m) | 1042m | 1458m | |
| Vehicle (m) | 3215m | 4375m | |
| Recognition Distance | Human (m) | 295m | 413m |
| Wild Boar (m) | 260m | 365m | |
| Vehicle (m) | 781m | 1094m | |
| System Functions | Picture-in-Picture Mode | √ | |
| Color Palettes | White Hot, Black Hot, Rainbow, Iron Red, Red Heat, Low-Light Mode | ||
| Languages | Simplified Chinese, Traditional Chinese, English, Russian | ||
| Storage | Photo/Video Recording | √ | |
| Image/Video Format | Image: JPEG / Video: MP4 | ||
| Storage | 16G | ||
| Interfaces | USB Port | Type-C (Supports Exporting Images & Videos) | |
| Battery | Battery Type | Removable 18500 battery, 2000mAh | |
| Charging Time | ≤3h | ||
| Operating Time | ≥5h | ||
| Total Power Consumption | ≤1.2W | ||
| Environmental Conditions | Operating Temperature | -20℃~+60℃ | |
| Operating Humidity | 10%~90%RH | ||
| Storage Temperature | -30℃~+70℃ | ||
| Shock Resistance | 1000G（Target） | ||
| IP Rating | IP67 | ||
| Certifications | CE、FCC、ROHS | ||
| Other Parameters | |||
| Product Dimensions | 173mm×67mm×64mm | ||
| Product Weight | 515g | ||
| Standard Packaging | Main unit, color box, manual, Type-C data cable (1 meter), lanyard, carrying pouch | ||
Application Scenarios
Security monitoring

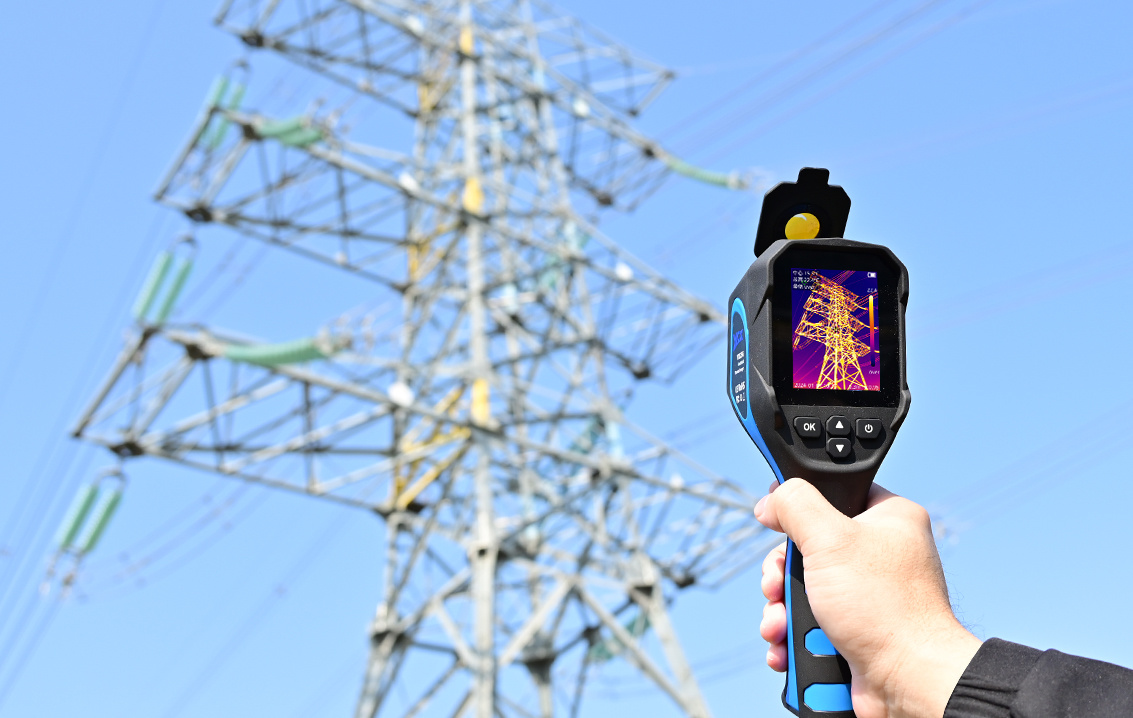

Power system detection
Military applications
